NORCO Lifting

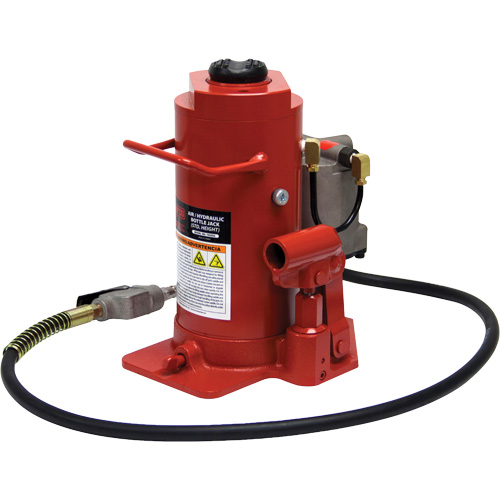

Standard Height Bottle Jack, 20 Ton(s), Air Hydraulic, 20-1/2" Raised Height

Model: FLV866

Mfr. No.: 76320C

  • Standard Height Bottle Jack, 20 Ton(s), Air Hydraulic, 20-1/2" Raised Height Helyx Safety & Industrial Supplies

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$799.00 / Each

0 In Stock

Lifting Capacity

20 Ton(s)

Lowered Height

10-7/8"

Raised Height

20-1/2"

Operation Type

Air Hydraulic

Stroke Length

6.75"

Screw Extension

2.75"

Base Size

6.44" x 9"

Pressure Range

100 to 130 PSI

Country Of Origin

Taiwan

  • For use in heavy duty trucks, farm equipment, building construction, construction and mining equipment, mobile home set-up and oil field applications
  • Fast efficient air pump reduces lifting time and has a built-in relief mechanism which prevents the jack from being used beyond its maximum allowable capacity
  • Convenient push button air valve connected to an in-line filter prevents contaminates from entering the air/hydraulic system
  • Unique design allows for manual operation when air is not available
  • Two piece zinc plated handle
  • Parkerized coating on pump piston, extension screw and extension adapters and chrome coated ram offer protection against rust
  • Longer wear life due to internally machined oil passages, smooth bearing surfaces and close tolerances
  • Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard
  • Equipped with a carrying handle
