NORCO Lifting

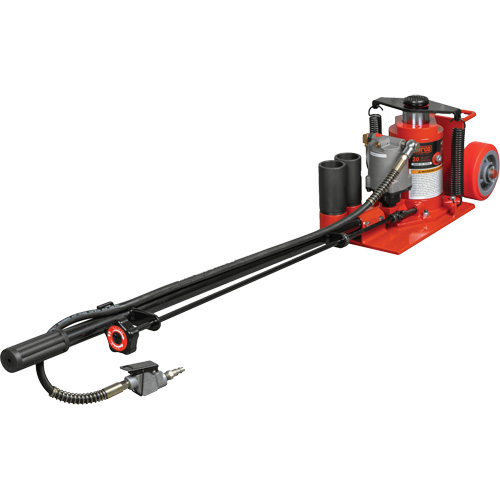

Low Height Floor Jack, 20 Ton(s) Capacity, 8-5/8" Lowered, 22-3/4" Raised, Air Hydraulic

Model: FLV863

Mfr. No.: 72090A

  • Low Height Floor Jack, 20 Ton(s) Capacity, 8-5/8" Lowered, 22-3/4" Raised, Air Hydraulic Helyx Safety & Industrial Supplies

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,245.00 / Each

0 In Stock

Lifting Capacity

20 Ton(s)

Lowered Height

8-5/8"

Raised Height

22-3/4"

Operation Type

Air Hydraulic

Stroke Length

4.125"

Screw Extension

2"

Base Size

9.25" x 17.25"

Pressure Range

100 to 130 PSI

Wheel Diameter

5-1/4"

Handle Length

36-1/2"

Country Of Origin

Taiwan


  • Intended for heavy duty truck, agricultural and heavy construction equipment
  • Ideal for loaded truck and trailer roadside service calls
  • Lightweight which makes it perfect for mobile repair service
  • Long handle with 36-1/2” reach helps in positioning jack under vehicles with low overhang
  • May be stored in a vertical position
  • Compact design fits easily between tandem wheels
  • Parkerized coating on pump piston, extension screw and extension adapters and chrome coated ram offer protection against rust
  • Removable extension screw is used with the two 4” extension adapters (included) for added height when necessary
  • Self-retracting ram eliminates manual lowering of the jack
  • The 5-1/4” diameter high impact composite wheels make maneuverability easy
  • Fast efficient air pump reduces lifting time and has a built-in relief mechanism which prevents the jack from being used beyond its maximum allowable capacity
  • Convenient push button air valve connected to an in-line filter prohibits contaminates from entering the air/hydraulic system
