FLIR

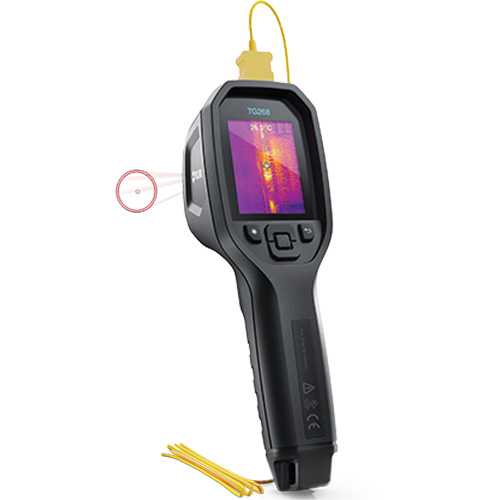

24:1 Spot IR Thermal Imaging Camera with Bullseye Laser & Type K Thermocouple, 160 x 120 pixels, -10° - 45°C (14° - 113°F), 70 mK

Model: ID684

Mfr. No.: 87505-0505

  • 24:1 Spot IR Thermal Imaging Camera with Bullseye Laser & Type K Thermocouple, 160 x 120 pixels, -10° - 45°C (14° - 113°F), 70 mK Helyx Safety & Industrial Supplies

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$819.00 / Each

0 In Stock

Includes

  • TG268
  • Wrist Strap Lanyard
  • Pouch
  • USB Type-C Cable
  • Type-K Thermocouple
  • Printed Documentation

Display Size

320" L x 240" W

Display Type

Built-in

Resolution

160 x 120 pixels

Thermal Sensitivity

70 mK

Temperature Range

-10° - 45°C (14° - 113°F)

Accuracy

±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) & 100°C to 400°C (213°F to 752°F), ±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F)

Field Of View

57° × 44°

Detector Pitch

12 µm

Image Frequency

8.7 Hz

Min. Focus Distance

0.3 m (0.98')

Min. Measurement Distance

0.26 m (0.85')

Spectral Range

7.5 - 14 µm

Standard(s) Met

CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan

Country Of Origin

Taiwan

  • Puts the power of thermal imaging in your hands—without the learning curve or bulky equipment
  • Whether you’re tracking down overheating electrical connections, inspecting buildings for energy loss, or ensuring motors and machinery run cool and clean, these thermal spot IR thermal cameras deliver fast, reliable answers
  • Takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues
  • Ideal for commercial electrical, facility maintenance, automotive, and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting
  • Patented Flir MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 × 120 to 320 × 240 for superior detail to help you accurately target potential faults and troubleshoot repairs
  • With the Flir Meterlink® app, you can quickly and efficiently capture and compare readings, analyze and share images and videos, and create reports and easily share them with your team
